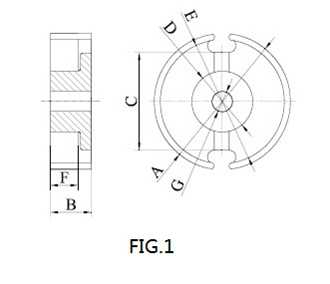

| 型號(hào) Type | 圖形 Fig. | 尺寸(mm) | C1 (mm-1) | Le (mm) | Ae (mm2) | Ve (mm3) | 重量（g) Wt(g) | |||||
| A | B | D | E | F | G | |||||||
| P14/8 | 1 | 14.0±0.3 | 4.2±0.2 | 5.9±0.2 | 11.8±0.4 | 3.1±0.2 | 2.9±0.3 | 0.79 | 19.8 | 21.5 | 425.7 | 2.9 |
| P18/11 | 1 | 18.0±0.4 | 5.3±0.2 | 7.4±0.2 | 14.9±0.4 | 3.8±0.2 | 0.6 | 25.8 | 43.3 | 1117.1 | 6.6 | |
| P26/16 | 1 | 25.5±0.5 | 8.1±0.2 | 11.1±0.3 | 21.6±0.4 | 5.6±0.2 | 0.44 | 38.1 | 86.7 | 3303.3 | 21.5 | |
| P30/19 | 1 | 30.0±0.5 | 9.4±0.2 | 13.3±0.3 | 24.6±0.4 | 6.6±0.3 | 5.5±0.2 | 0.35 | 44.9 | 128.3 | 5760.7 | 35.6 |
| P36/22 | 1 | 35.6±0.6 | 10.9±0.2 | 15.9±0.3 | 29.6±0.4 | 7.6±0.3 | 5.4±0.4 | 0.29 | 53.3 | 183.7 | 9791.2 | 50.9 |
