EP
瀏覽次數(shù)： 9927

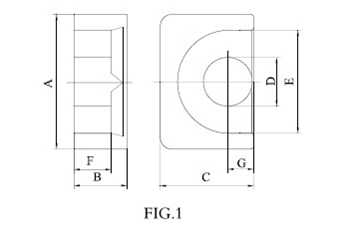

| 型號(hào) Type | 圖形 Fig. | 尺寸(mm) | C1 (mm-1) | Le (mm) | Ae (mm2) | Ve (mm3) | 重量（g) Wt(g) | ||||||
| A | B | C | D | E | F | G | |||||||
| EP6/6 | 1 | 6.0±0.2 | 2.8±0.1 | 3.8±0.2 | 1.7±0.1 | 4.25min | 2.0±0.1 | 3.06 | 9.1 | 2.9 | 26.4 | 0.4 | |
| EP9/7 | 1 | 9.2±0.2 | 3.7±0.15 | 6.4±0.2 | 3.3±0.1 | 7.2min | 2.7±0.2 | 1.44 | 14.8 | 10.3 | 152.4 | 1.35 | |
| EP12/10 | 1 | 11.5±0.3 | 5.1±0.15 | 7.7±0.25 | 3.3±0.15 | 9.2min | 3.8±0.15 | 1.8±0.15 | 1.7 | 18.8 | 11 | 206.8 | 2.85 |
| EP13/13 | 1 | 12.5±0.3 | 6.5±0.15 | 8.8±0.3 | 4.4±0.2 | 10.0±0.3 | 4.7±0.15 | 1.18 | 23.3 | 19.8 | 461.3 | 4.44 | |
| EP24/21 | 1 | 24.0±0.5 | 10.7±0.15 | 15.0±0.35 | 8.8±0.3 | 16.5±0.4 | 7.2±0.15 | 4.5±0.2 | 0.48 | 37.6 | 78.9 | 2966.6 | 34.2 |
